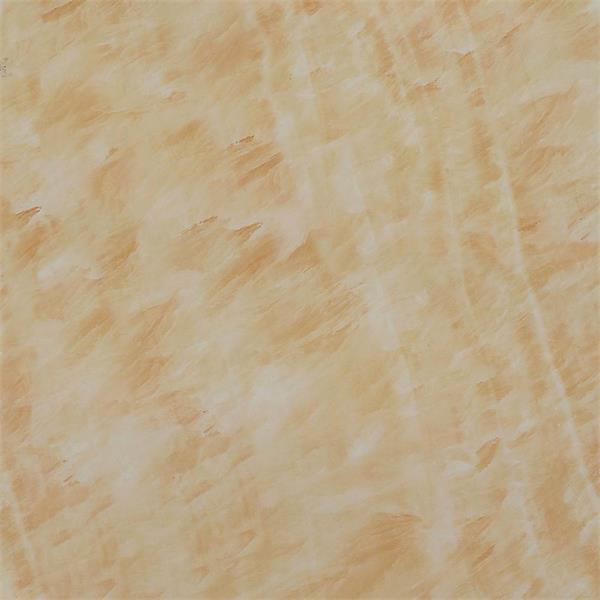

PLM08-M

PLM08-M offered by China manufacturer Polyma Color Film and Panel Co.,Ltd. Buy PLM5201-AL directly with low price and high quality.
Quantity:
  • POLYMA

  • PLM08-M

  • PVC Film

Product Description
PLM08-M



 Application

标题

01


 Dimensions and Tolerances



标题


Dimensions Tolerances
Length     500m ±5m
Width     1.25m ±5mm
Thickness    0.07mm ±0.005mm
Weight     65KG ±5KG
Other dimensions could on your request

 Polyma decorative film testing standard:
标题

 Surface Quality Standard
Description Size of Defect Results
Corrugation   Not obvious
Bubbling ≤5mm Not more than 1 occurrence per m2
Flaw ≤3mm Not more than 3 occurrences per m2
Scoring ≤100mm Not more than 3 ocurrences per 500m
Scratch ≤300mm2 Not more than 3 ocurrences per 500m

 Compliance Table

Description Standard Results
Composite film thickness (um) GB/T 6672 65
Film width (m) GB/T 6673 1.03/1.25/1.30
Film length (m) GB/T 6673 500/1000
Pencil Hardness GB/T 6639 HB
Adhesion GB/T 9286GB/T 1720 Not lower than level 1
Withstand impact GB/T 1732 50 kg.cm no shad / crack
Film elasticity (Mpa) GB/T 13022 200
Film break point (%)   120
180℃Degree Peeling Strength (N/mm) GB/T 2790 2
Heat Difference Resistance GB/T 17748 No effect
Boiling Water Resistance GB/T 17748 No effect
Chemical Resistance
Acid GB/T 17748 No effect
Alkaline GB/T 17748 No effect
Oil GB/T 17748 No effect
Solvent GB/T 17748 No effect
Washing GB/T 9266 No effect over 10,000 times


  Certificate
标题
证书

 Recommended pattern
标题



Niches
 Why choose us?
标题

Raw material:
1-Ink
Features:

Uniformity color
Temperature resistance

2-Glue
Features:
Good adhesion, no bubble

3-PET film
Features:
Excellent physical properties, chemical properties.
Uniformity of thickness.




Machine
1-We could improve the sharpness and clarity of patterns, also could create new colors which are difficult to customized.
2-Laminating machine, length is over 30m, which adopts closed loop and automatic tension control system, net-like rubber roll gluing and 25m oven. It make sure that the chemical residues of decorative film are lower than American standard.
3-Two 30 oven. All finished products will be put in oven at least 72 hours to lower the chemical residues again and dry the glue.


QC
Testing before production:
1-Every batch of raw material will be tested.
2-All colors match by America X-Rite Color Master.

Testing during production:
QC will inspects product on production line every hour.

Testing after production:
1-Samples of every batch product will undergo 2 hours in boiling water test.
2-Samples of every batch product will undergo punching test for checking stretching and adhesion properties.
3-Polyma decorative film was certificated by ISO9001:2008 and Reach163.


  Certificate
标题



Previous:
Next:

Related Products

content is empty!

 Please note that this films is not suitable for end-users, nor is it self-adhesive!
