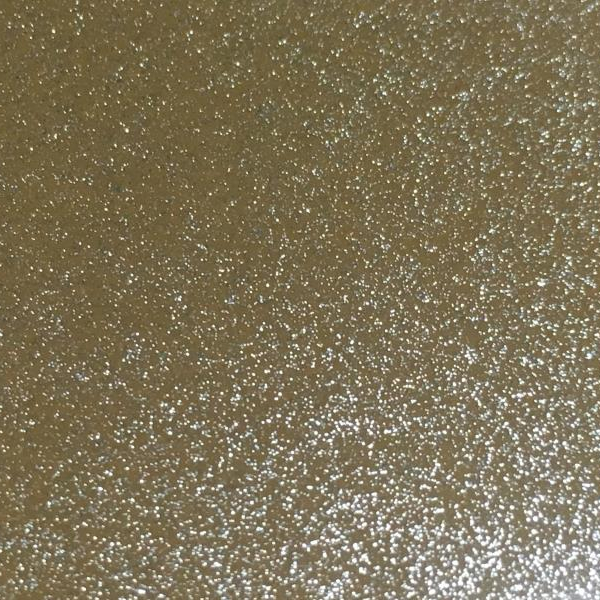

PAA-17831-P3M

 Application

Dimensions		Tolerances
Length	500m	±5m
Width	1.25m	±5mm
Thickness	0.07mm	±0.005mm
Weight	65KG	±5KG
Other dimensions could on your request


 Polyma decorative film testing standard:


 Surface Quality Standard

Description	Size of Defect	Results
Corrugation		Not obvious
Bubbling	≤5mm	Not more than 1 occurrence per m2
Flaw	≤3mm	Not more than 3 occurrences per m2
Scoring	≤100mm	Not more than 3 ocurrences per 500m
Scratch	≤300mm2	Not more than 3 ocurrences per 500m

 Compliance Table

Description	Standard	Results
Composite film thickness (um)	GB/T 6672	≥65
Film width (m)	GB/T 6673	1.03/1.25/1.30
Film length (m)	GB/T 6673	500/1000
Pencil Hardness	GB/T 6639	≥HB
Adhesion	GB/T 9286，GB/T 1720	Not lower than level 1
Withstand impact	GB/T 1732	50 kg.cm no shad / crack
Film elasticity (Mpa)	GB/T 13022	≥200
Film break point (%)		≥120
180℃Degree Peeling Strength (N/mm)	GB/T 2790	≥2
Heat Difference Resistance	GB/T 17748	No effect
Boiling Water Resistance	GB/T 17748	No effect
Chemical Resistance
Acid	GB/T 17748	No effect
Alkaline	GB/T 17748	No effect
Oil	GB/T 17748	No effect
Solvent	GB/T 17748	No effect
Washing	GB/T 9266	No effect over 10,000 times

 Certificate




 Recommended pantern
